Gol Pumps 3″ Thin Submersible Well Pump – 153Ft – 1740 GPH – 3 Wire – 3/4HP

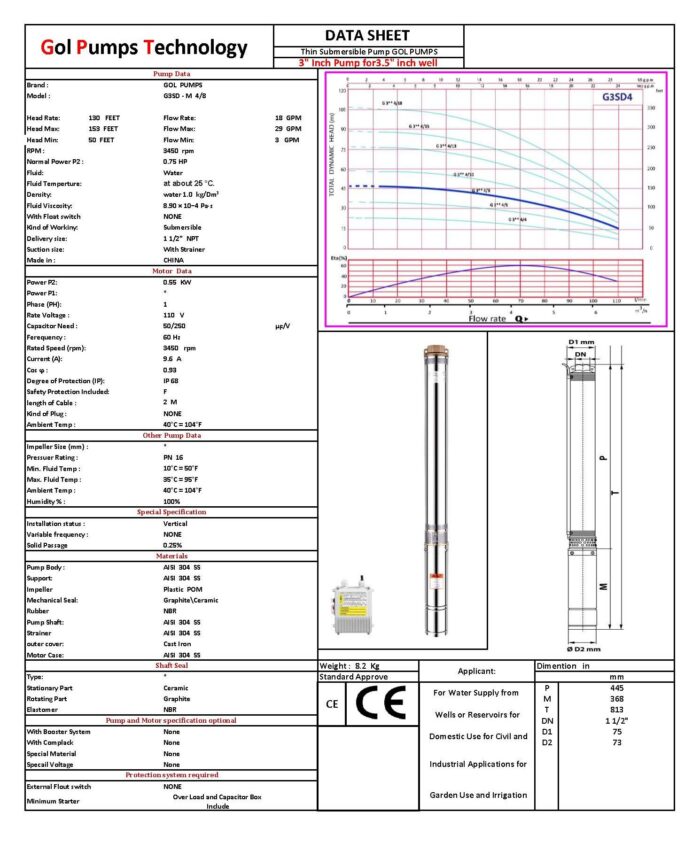

Description Technical Specifications Pump Type Thin Submersible Pump Pump Brand GOL Pumps Pump Model 3SDM4/8 Warranty 1 Year Maximum Head 153ft Minimum Head 50ft Maximum Flow 1740 GPH Minimum Fluid Temperature 50°F Maximum Fluid Temperature 95°F Maximum Ambient Temperature 104°F Discharge 1.5″ NPT Pump Material Stainless Steel 304 Pump Diameter 3″ Performance Data   MODEL P2 DELIVERY      N = 3450 1/min  1~ 220V KW HP Q m3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0 6.6 l/min 0 10 20 30 40 50 60 70 80 90 100 110 3SD M4/8 0.55 0.75 H (m) 48 47 47 46 45 43 41 37 33 28 23 16 Dimension and Weight Model DN Dimension(inch) Weight(lbs) 1~ 110V/220V P M(s) M(t) T(s) T(t) P M(s) M(t) T(s) T(t) 3SD M4/8 1″/1* 0.25″/1* 0.5″ 17.5 14.5 13.3 32 30.8 4 14.1 12.3 18 16.3     Components Material Pump external casing AISI 304 SS Delivery casing Cast-Cu ASTM C85500 Suction lantern Cast-Cu ASTM C85500 Diffuser Plastic.PC Impeller Plastic.POM Shaft AISI 304 SS Shaft coupling AISI 304 SS Wear ring AISI 304 SS Motor external casing AISI 304 SS Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 Bottom support AISI 304 SS Mechanical seal Special seal for deep well(Graphite-Ceramic/TC) Shaft  AISI 303 SS-ASTM 1045/5140 Seal lubricant oil Oil for food machinery and pharmaceutic use.
