Gol Pumps 3.5″ Thin Submersible Well Pump – 173Ft – 1890 GPH – 3 Wire – 1HP

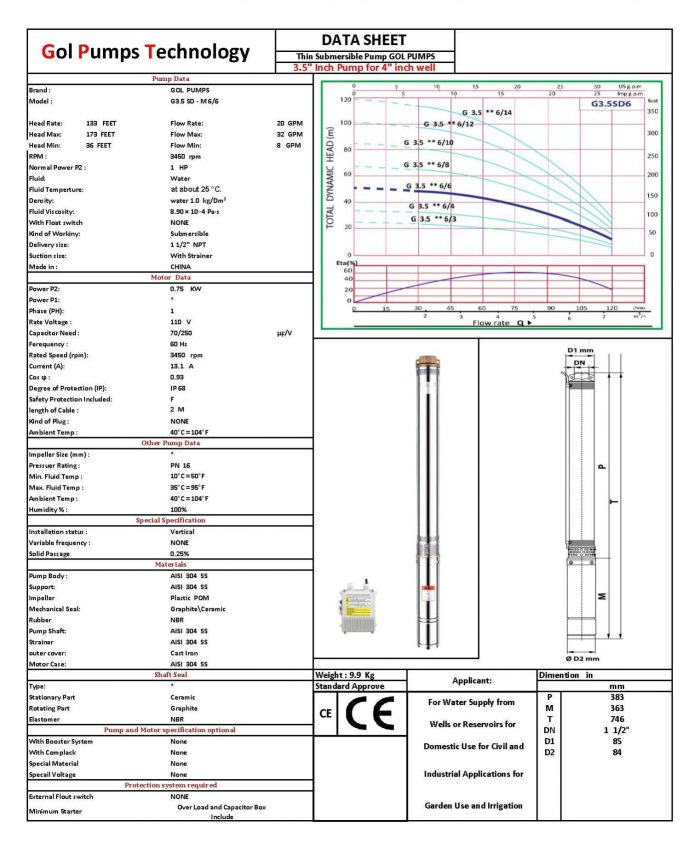

Description Technical Specifications Pump Type Thin Submersible Pump Pump Brand GOL Pumps Pump Model 3.5SDM6/6 Warranty 1 Year Maximum Head 173ft Minimum Head 36ft Maximum Flow 1920 GPH Minimum Fluid Temperature 50°F Maximum Fluid Temperature 95°F Maximum Ambient Temperature 104°F Discharge 1.5″ NPT Pump Material Stainless Steel 304 Pump Diameter 3.5″ Performance Data   MODEL P2 DELIVERY      N = 3450 1/min -3 1~ 220V KW HP Q m3/h 0 0.9 1.8 2.7 3.6 4.5 5.4 6.3 7.2 l/min 0 15 30 45 60 75 90 105 120 3.5SD M6/6 0.75 1 H (m) 51 50 48 47 43 38 31 22 12 Dimension and Weight Model DN Dimension(inch) Weight(lbs) 1~ 110V/220V P M(s) M(t) T(s) T(t) P M(s) M(t) T(s) T(t) 3.5SD M6/6 1 * 0.5″ 15 14.3 13.3 29.4 28.4 4.6 17.2 15 22 20     Components Material Pump external casing AISI 304 SS Delivery casing Cast-Cu ASTM C85500 Suction lantern Cast-Cu ASTM C85500 Diffuser Plastic.PC Impeller Plastic.POM Shaft AISI 304 SS Shaft coupling AISI 304 SS Wear ring AISI 304 SS Motor external casing AISI 304 SS Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 Bottom support AISI 304 SS Mechanical seal Special seal for deep well(Graphite-Ceramic/TC) Shaft  AISI 303 SS-ASTM 1045/5140 Seal lubricant oil Oil for food machinery and pharmaceutic use.
