Gol Pumps 3″ Thin Submersible Well Pump – 193 Ft – 942 GPH – 3 Wire – 1/2HP

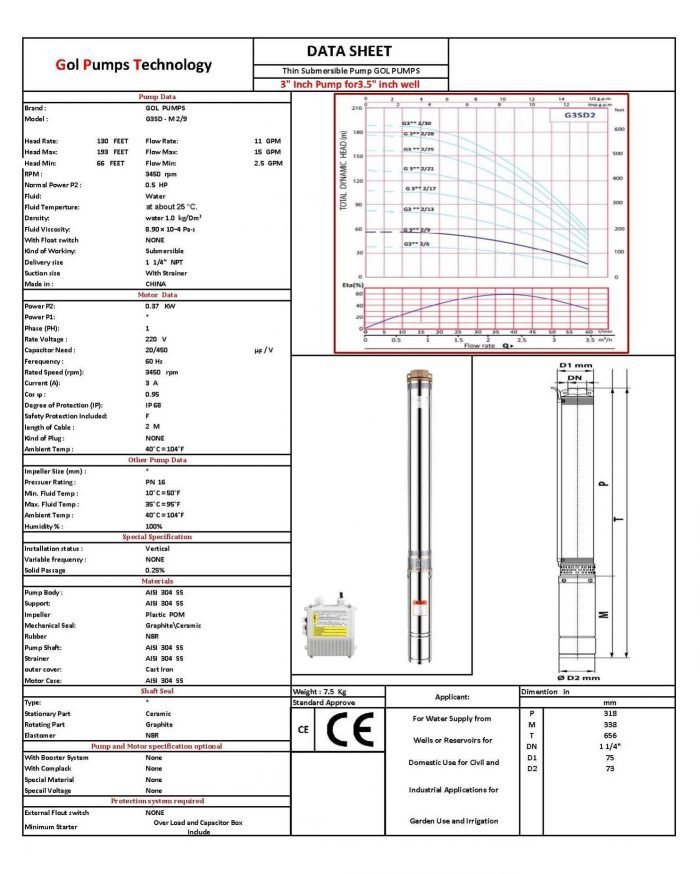

Description Technical Specifications Pump Type Thin Submersible Pump Pump Brand GOL Pumps Pump Model 3SDM 2/9 Warranty 1 Year Maximum Head 193ft Minimum Head 66ft Maximum Flow 942 GPH Minimum Fluid Temperature 50°F Maximum Fluid Temperature 95°F Maximum Ambient Temperature 104°F Discharge 1.25″ NPT Pump Material Stainless Steel 304 Pump Diameter 3″   Performance Data MODEL P2 DELIVERY      N = 3450 1/min  1~ 220V KW HP Q m3/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3 3.6 l/min 0 5 10 15 20 25 30 35 40 45 50 55 60 3SD M2/9 0.37 0.5 H (m) 56 56 56 55 54 52 49 46 41 36 30 24 16 Dimension and Weight Model DN Dimension(inch) Weight(lbs) 1~ 110V/220V P M(s) M(t) T(s) T(t) P M(s) M(t) T(s) T(t) 3SD M2/9 1″/1* 0.24″ 12.5 13.3 12.1 26 25 4.2 12.3 10.6 16.5 15     Components Material Pump external casing AISI 304 SS Delivery casing Cast-Cu ASTM C85500 Suction lantern Cast-Cu ASTM C85500 Diffuser Plastic.PC Impeller Plastic.POM Shaft AISI 304 SS Shaft coupling AISI 304 SS Wear ring AISI 304 SS Motor external casing AISI 304 SS Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 Bottom support AISI 304 SS Mechanical seal Special seal for deep well(Graphite-Ceramic/TC) Shaft  AISI 303 SS-ASTM 1045/5140 Seal lubricant oil Oil for food machinery and pharmaceutic use.
